KFI PRODUCTS Fairlead Bracket - Arctic Cat 101190
€40,95
Passa alle informazioni sul prodotto
KFI PRODUCTS Fairlead Bracket - Arctic Cat 101190
€40,95

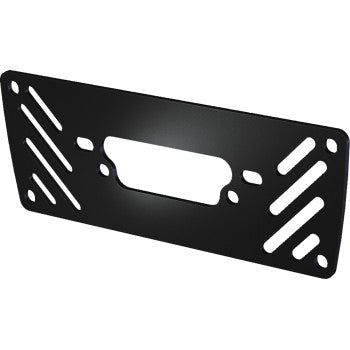

- Constructed of 3/16" steel
- Some plastic trimming is required
- Metal bead blasted before powder-coated for best possible finish prep and durability
- Very easy to install
- Complete installation instructions included
- 100% made in the USA
- Designed to work with both standard 4.875" and WIDE 6.000" or 6.600" bolt pattern fairleads
- Notes
- If you have a 2-hole winch you will need to purchase additional Part #4505-1069
- Mount designed to work with the following winches:
- KFI: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2
- KFI: AM-25 / AM-35 / AS-25 / AS-35 / AS-50x / AS-50wx
- WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S / VRX 45 / VRX 45-S
- WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s
- WARN: RT15 / RT25 / RT30 / XT15 / XT25 / XT30 / RT40 / XT40
- WARN: Vantage 2000-3000 lbs / ProVantage 2500-3500 lbs
- WARN: Vantage 4000 lbs / ProVantage 4500 lbs (will use wide fairlead that comes with winch)
- RAMSEY: ATV2500 / ATV3000
- SUPERWINCH: Terra25 / Terra35 / Terra45 / Terra 2500 (SR) / Terra 3500 (SR) / Terra 4500 (SR) / A3500 / LT2000 / UT3000 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV / LT4000UTV
- MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500
- CYCLE COUNTRY: Work Power 2500 / PowerMax 2500 and 3500
- BADLAND: 2-hole winches (requires additional part #4505-1069)
- BADLAND: standard and wide winches
- CHAMPION: 2-hole winches (requires additional part #4505-1069)
- CHAMPION: ATV 4-hole, UTV 4-hole, and wide winches
- KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C / KT4000 / KT4000C
- KEEPER CORP. TRAKKER: KT2000 (requires roller fairlead with a 4.875" bolt pattern and #4505-1069)
- SMITTYBILT: XRC 2.0 (requires additional part #4505-1069)
- SMITTYBILT: XRC 3.0 / XRC 4.0
- XGEAR: X3000 / X4000
- VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (Hardcore Series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
- Traveller: 1078311
- Traveller: 1078088 / 1078302 (require roller fairlead with a 4.875" bolt pattern)
- QUADBOSS: RP25 / RP35
- Possibly many others with 4-hole (3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern) or 4-hole wide (3.00" x 6.60" bolt pattern with rollers that are 6.600" or 6.000" bolt pattern) or 2-Hole (3.10" with rollers that are 4.875" bolt pattern and additional party #4505-1069)
- Notes
- Roller fairlead and winch not included.
Fitments
2014-2015 Arctic Cat Prowler HDX 500 - - 2010-2014 Arctic Cat Prowler 550 - - 2010-2014 Arctic Cat Prowler 550 EFI 4x4 - - Fitment Disclosure
This quick reference fitment information is provided to direct you to our catalog information and the manufacturer's information. Consult manufacturer publication(s) and/or website(s) for specific fitment and application information and other important information. This fitment information is based upon the stock version of the motorcycle or unit referenced and any accessory added or other modification could invalidate the quick reference information provided.
