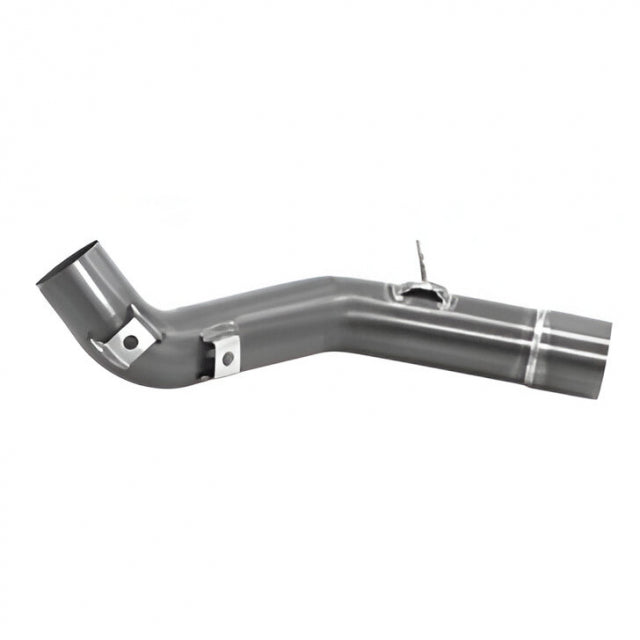

71776MI Arrow Racing Link Pipe, Stainless Steel for BMW F750GS/850GS 2021-2025

Arrow's 71776MI Racing Link Pipe, Stainless Steel is made specifically for BMW F750GS/850GS (2021-current).

• Mid-pipe material stainless steel
• Silencer mounting welded mount
• Junction (inlet) diameter (mm) 50.00
• Junction (outlet) diameter (mm) 50.00
• CO sensor plug NO
• Oxygen sensor plug NO
• Db Killer NO
• Weight (Kg) 0.75

Collectors and pipes are a most important component of an exhaust system, making it possible to reach very important gains in terms of power and torque. Made in AISI 304 stainless steel and, for competition Full Titanium systems, in titanium, Arrow collectors design comes from the experience gained and the results achieved in years of races at all levels, with the un-replaceable "touch" of the master mechanics working in the R&D: diameters, sections, bends, section changes weldings and layout are carefully designed and developed on the bike to create a product with high performance, durable, reliable and with the unique Arrow style.

Depending on engine configuration and its spark timing, the layout can be really different as it's needed to adapt it to changing needs: that’s why we speak about different schemes like 4:2:1, 4:2:2, 2:1:2, 4:2:1:2 and so on. To follow one scheme or another is a most important decision, to be taken at the very start of the project, and it will influence all the other steps.

To avoid unnecessary drag on the flow of exhaust gases, all junctions and connections are made using CNC-machined parts. For the same reason, all welds need to be perfectly made and non-invasive, avoiding any section reduction for the flow of gases.
