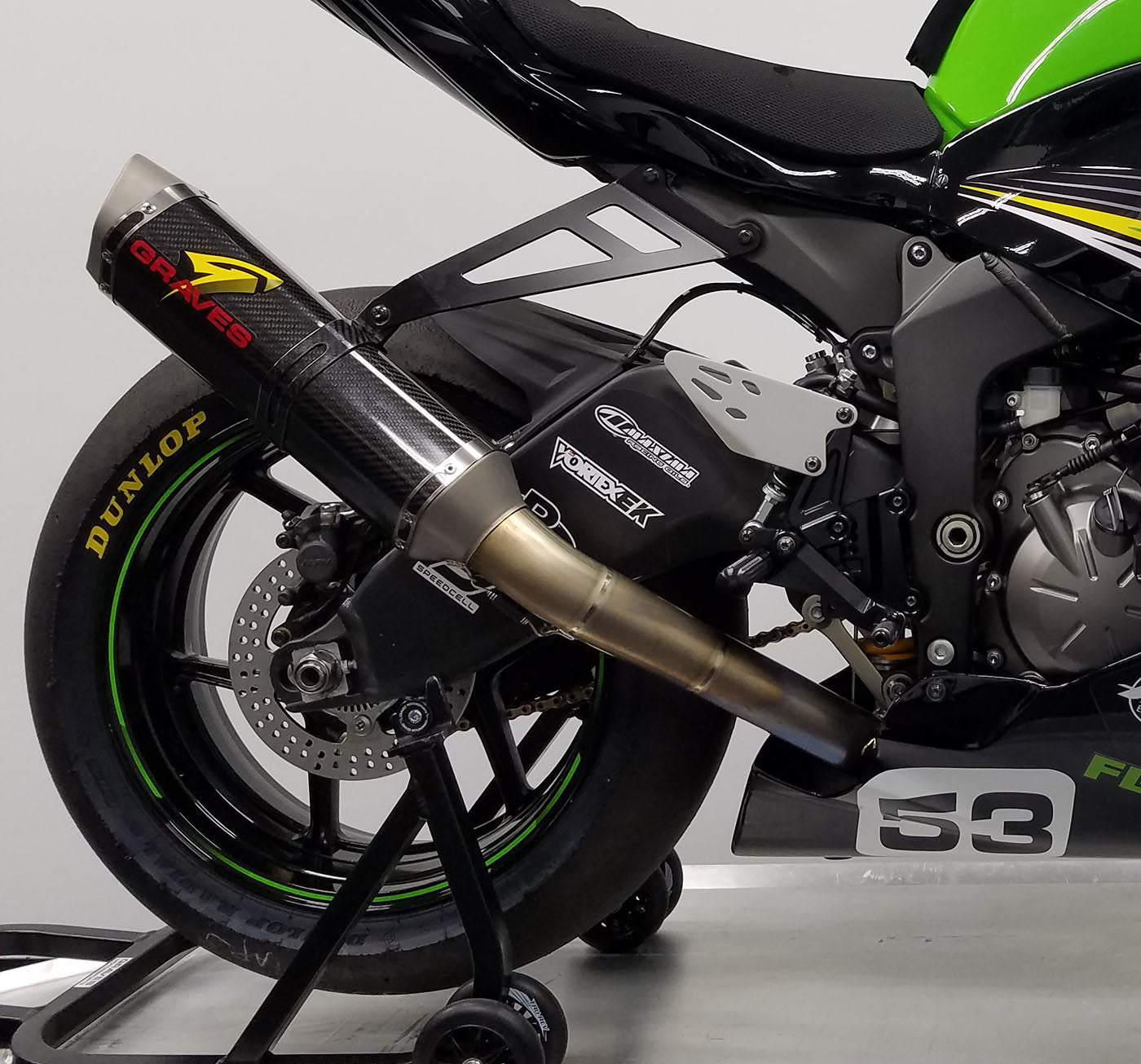

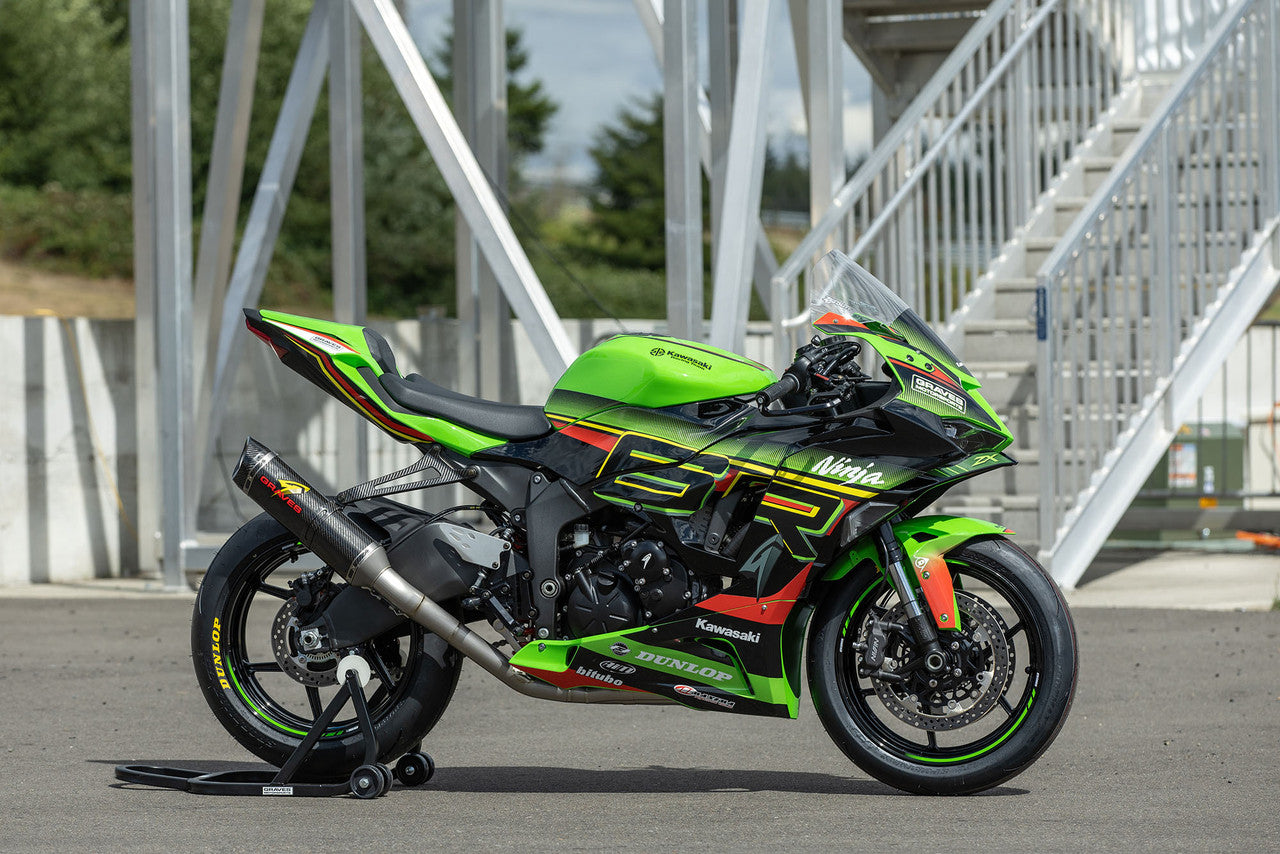

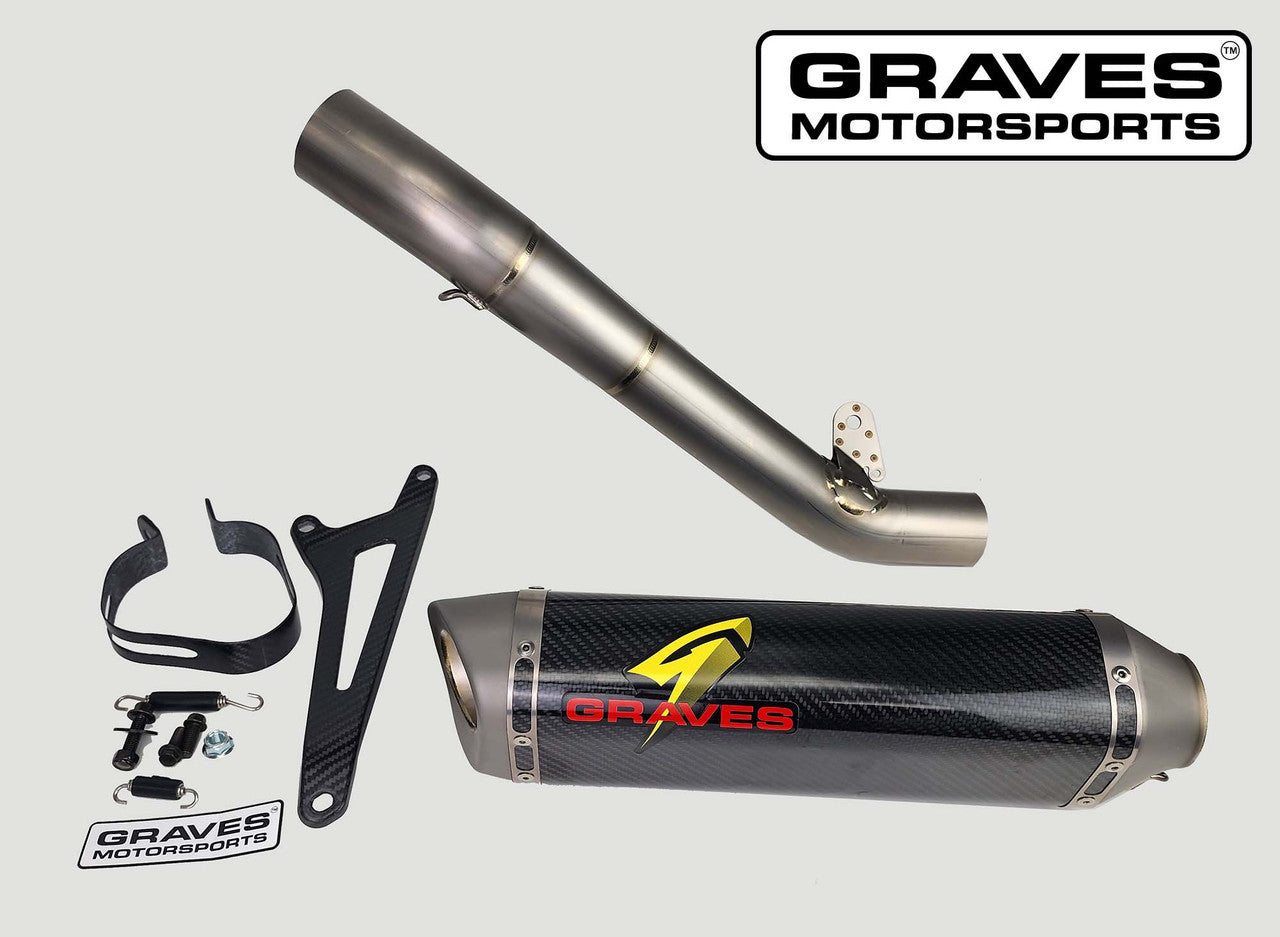

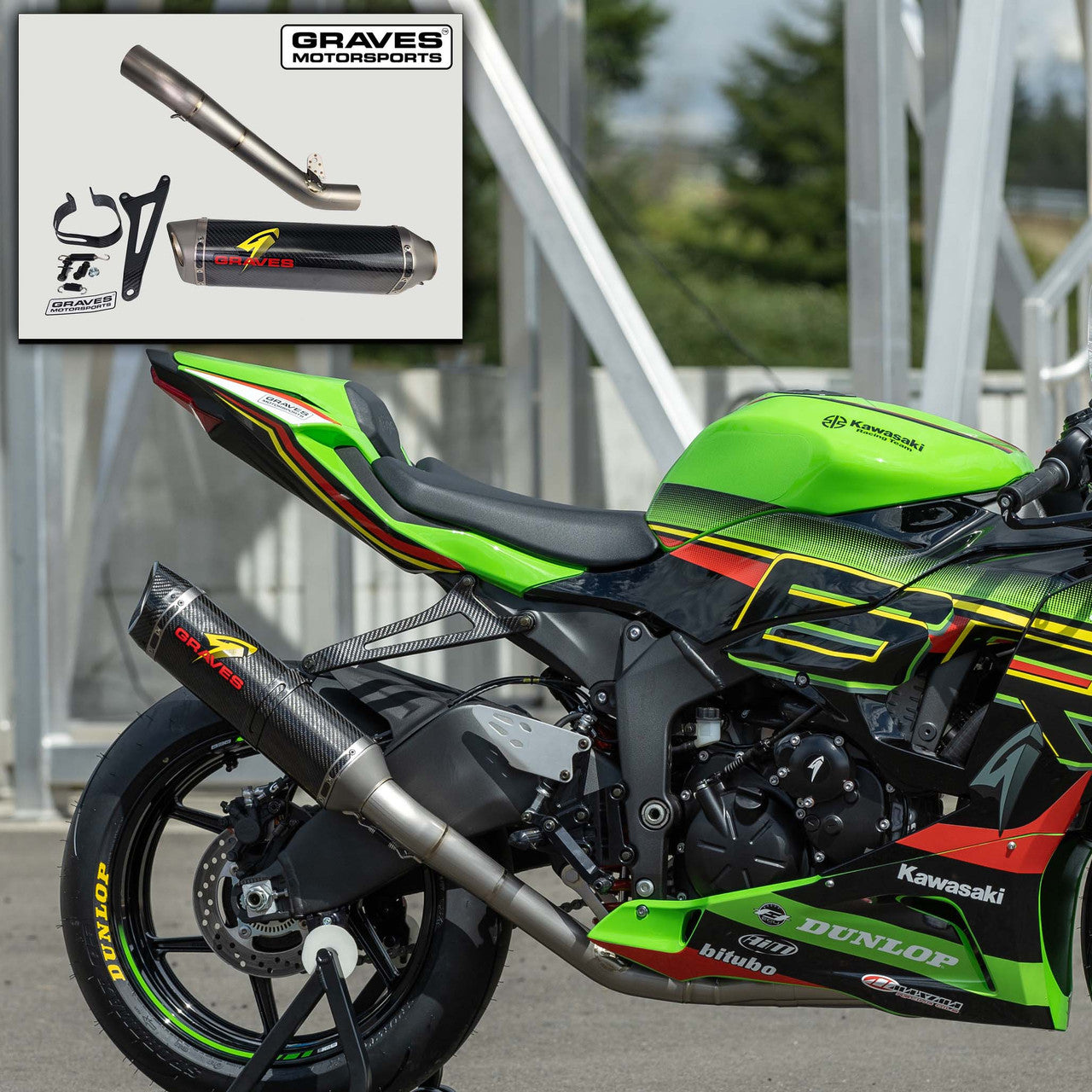

Graves Motorsports Works2 Cat Back Exhaust Zzx6r 2019- 2024 Exk-19zx6-Cbtcw

Graves Motorsports 2019-2024 Kawasaki ZX-6R WORKS2 Titanium Cat Back Exhaust System with carbon fiber silencer. Graves' precise engineering develops precision products that are designed to outlook, outperform and outlast the competition. Graves Exhaust systems are designed for the elite rider seeking top of the line performance, fit, finish and value. This exhaust system was developed using the same technology that has powered the Graves Racing Team to 25 Professional AMA National Championships including 9 Superbike Championship titles and 3 Side x Side Pro Titles (Pro Stock and Pro Mod UTV).

This product is intended for closed course competition use only. Use of this product for any other purpose is strictly prohibited.

We did not allow compromise in the development of this system. Material diameters, lengths, the silencer core size and length are optimized for maximum power output throughout the throttle and RPM range. Combined with Graves’ exclusive flash tune map this system produces improved midrange and top end horsepower over the lower mount systems.

We use the same 1.00 MM thick wall high heat grade Titanium tubing used on our performance Superbike exhausts. This material is designed special for maximum durability and oxidation resistance up to 800*Celsius / 1472*Fahrenheit. It is designed to live at almost twice the temperature of normal Grade2 Titanium. The tubes are precision bent and cut with the latest equipment available. The tubing is then welded in fixtures designed so that repeat-ability is second to none. It comes with a single Lambda receiver bung for on track data logging or Dyno tuning. The spring tabs are made from 4MM thick Titanium wire for long life.

The silencer is has a Titanium entrance cap and attaches to the Carbon fiber silencer body. The silencer is hung with a carbon silencer strap. The silencer body attaches to the end caps with stainless aircraft grade rivets and Titanium silencer bands. The inter core tube is made of stainless that slips over the entrance and into the exit cap that is made of Titanium and accented with a carbon fiber beauty cover with a 60* slash cut.


- Chuck Graves

Features:

• New Diamond Shaped Silencer Design with tapered entrance (Carbon with Carbon end cap) designed to match the ZX6's body line.
• Silencer mounts using a stealth 100% carbon fiber strap
• Constructed from Aerospace grade hi heat Titanium alloys
• Single Lambda sensor comes standard
• Advanced welding process showcases laser perfection welds
• Long Tapers with Precision fitment and "butt" welds

Fitment: Kawasaki ZX-6R 2019-2024
