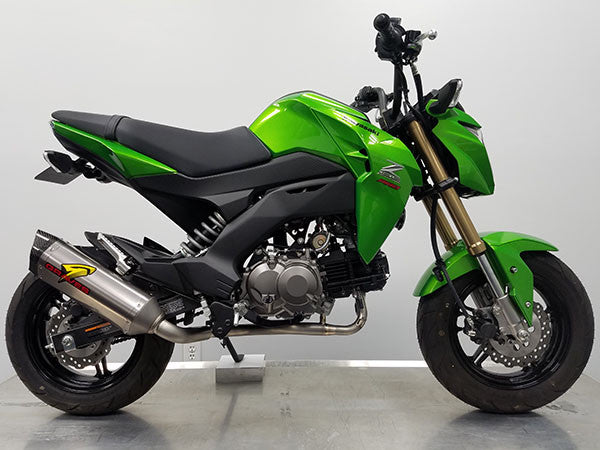

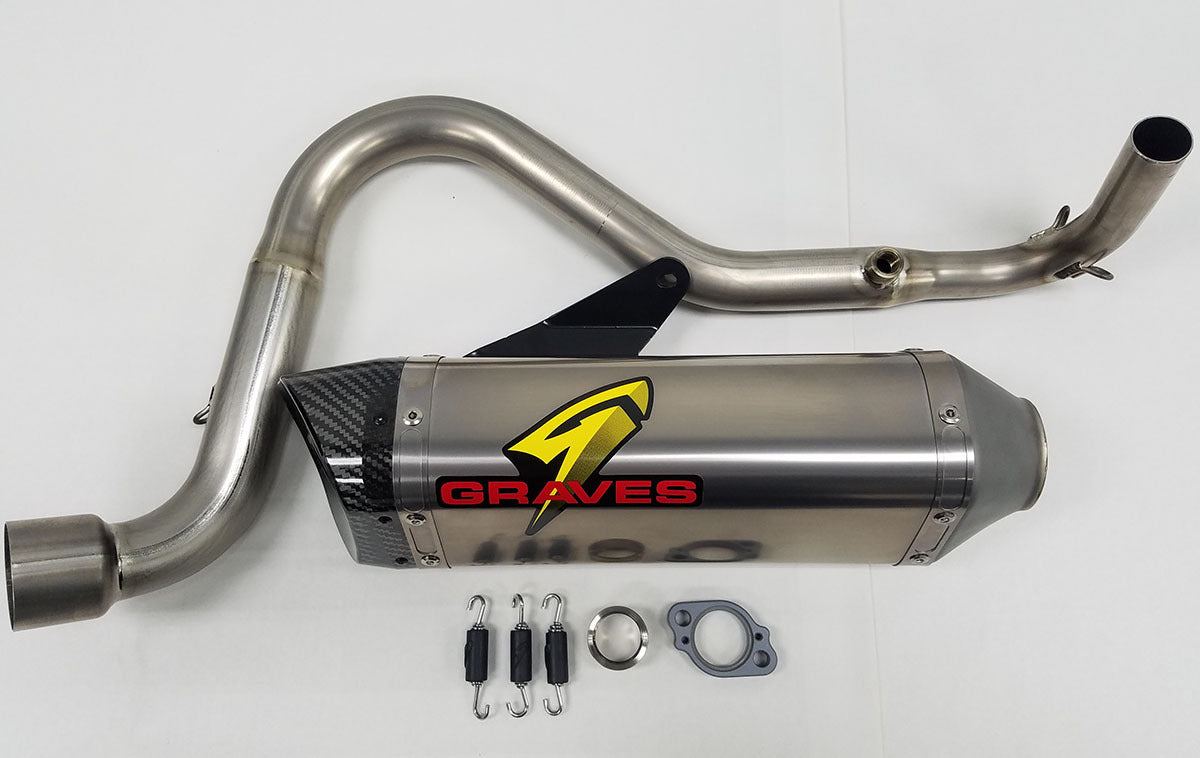

Graves motorsports full titanium exhaust system Kawasaki Z125 pro 2017-2024 EXK-18Z125-FTT

Graves Motorsports 2017-2024   Kawasaki ZX125 Full Exhaust System with Titanium silencer. GMS Exhaust systems are designed for the elite rider seeking top of the line performance, fit, finish and value. This Z125 exhaust system was developed using the same technology that has powered Monster Energy Graves Yamaha riders to 8 Moto America / AMA Superbike championships along with numerous 600cc titles. This product is intended for closed course competition use only. Use of this product for any other purpose is strictly prohibited.

We did not allow compromises in the development of this system. Material diameters, lengths, the silencer core size and length are optimized for maximum power output throughout the throttle and RPM range.

We use high heat grade Titanium tubing. This material is designed special for maximum durability and oxidation resistance up to 800*Celsius / 1472*Fahrenheit. It is designed to live at almost twice the temperature of normal Grade 2 Titanium. The tubes are precision bent and cut with the latest equipment available. The tubing is then welded in fixtures designed so that repeat-ability is second to none. It comes with a single Lambda receiver bung for on track data logging or Dyno tuning. The spring tabs are made from 4MM thick Titanium wire for long life.

The silencer mounts to the motocycle using a built in strapless aluminum mountain bracket for the cleanest look possible. The silencer body attaches to the end caps with stainless aircraft grade rivets and Titanium silencer bands. The inter core tube is made of stainless that slips over the entrance and into the exit cap that is made of Titanium and accented with a Carbon Fiber beauty cover with a 60* slash cut.

This system performs like our superbike pipe and shows like jewelry.

- Chuck Graves

Features:

• New Diamond Shaped Silencer Design with tapered entrance designed to match the Z125's body line.
• Silencer mounts direct using a built in bracket
• Constructed from Aerospace grade hi heat Titanium alloys
• Single Lambda sensor up front for the OEM lamda to bolt into
• Advanced welding process showcases laser perfection welds
• Long Tapers with Precision fitment and "butt" welds
• Flanges are made from 7075 hard anodized aluminum. Built to last!

(COMING SOON) pound weight saving over stock

Stock DB / GSM DB

Fitment: Kawasaki ZX125 PRO 2017-2020
